SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

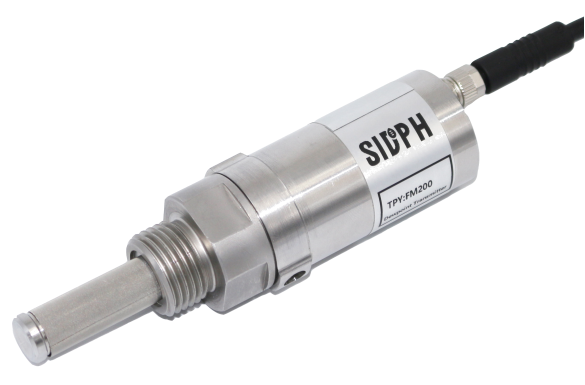

FM200 Dew point transmitter

SPECIFICATIONS£º

-80¡æ¡­+20¡ætd dew point

Designed for industrial spot checking and field calibration

Accuracy ¡À2¡ædp

Traceable 8-point calibration certificate

Excellent stability save your calibration cost

Output signal 4¡­20mA

Flexible, reliable and easy-to-operate

Rapid response, simple operation and low maintenance

DATASHEET MANUAL LIVE CHAT

The key to SIDPH transmitters performance is its sensor technology , SIDPHs advanced self-developed capacitive alpha-alumina and silica hybrid technology for low dew point and dry control industrial environment. Transmitter with long-term stability ,without drift, high precision, fast response and high sensitivity. These makes the SIDPH a high-class device with minimal maintenance.
FM200 has a programmable current output(4-20mA) , with 9-24vdc power supply.FM200 dew point transmitter is widely used in air separation, petrochemical industry, natural gas, metallurgy, lithium batteries, drying equipment, electric power, machinery manufacturing and other industries of all sorts of moisture content in gas detection.




TECHNICAL DATA
Measurement range -80¡­+20¡ætd
Accuracy

¡À2¡æ£¨>-60 ¡ædp £©
¡À3¡æ£¨<-60 ¡ædp £©

Pressure range 5MPa£¨Max 15MPa£©
Humidity 0¡­100%RH
Temperature 0¡­+50¡æ£¨-30¡­+50¡æ£©
Flow rate 1-5L/min
Response time 15 sec
Output signal 4¡­20mA
Mechanical Connection G 1/2¡± thread (ISO 228/1)
Supply voltage 9-24V/DC
Ingress protection IP65£¨NEMA4£©
Housing material 316L stainless steel
Wire connection 2-wire
EMC Compliance with IEC 61326-1
DIMENSIONS
