SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

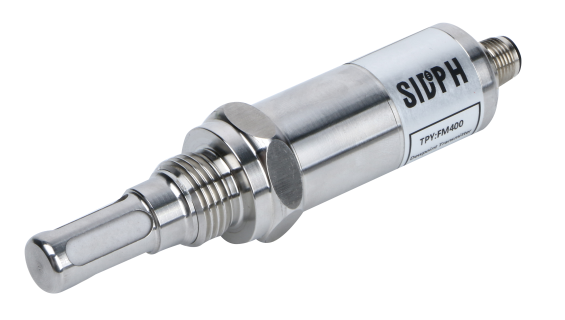

FM400 Dew point transmitter

SPECIFICATIONS：

Measure relative humidity,temperature,dew point

-60℃…60℃dp

2000 data storage

Designed for industrial spot checking and field calibration

Digital output RS485

Accuracy ±2℃dp

Traceable 8-point calibration certificate

DATASHEET MANUAL LIVE CHAT

FM400 dew point transmitter is simple operate, It makes dew point measurements as easy as temperature and pressure measurements and can be mounted directly into your air or gas management and control system.

Particularly suitable for the power industry, air purification and clean room, compressed air drying, pharmaceutical processing, lithium battery production, plastic substrate drying and so on.

TECHNICAL DATA

Measurement range	Dew point: -60…+60℃td Temperature: -50…100℃ Humidity:0…100%RH
Accuracy	Dew point：±2℃Td Temperature：±0.2℃ Humidity：±0.8%RH
Pressure	20 bar
Detect gas	non-strong corrosive gases
Response time	T63<12s
Output signal	RS485/UART
Mechanical Connection	G1/2 thread (ISO 228/1)
Supply voltage	3.3V/AC
Ingress protection	IP65（NEMA4）
Housing material	316 stainless steel
Repeatability	<0.5%RH ;<0.1℃
EMC	Compliance with 04/108/EG
CE	Certified

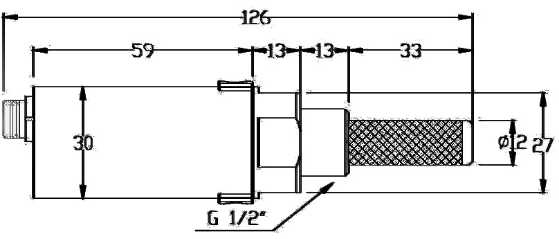

DIMENSIONS
