Welcome to SIDPH!

CORE COMPETENCIES

SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

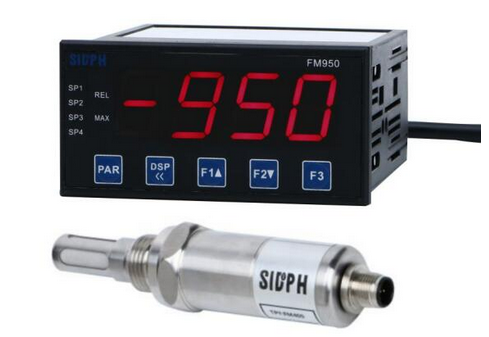

FM950 online dew point meter

SPECIFICATIONS£º

Dew point or ppmv moisture content

Analog output 4¡­20mA

Dew point range-80¡ætd¡­+60¡ætd

Clear  LED diaplay

Designed for industrial spot checking  and field calibration

Compact and lightweight

¡À2¡æ high accuracy

Traceable calibration certificate 8 point



A cost effective hygrometer with digital display, digital outputs and dual alarms offering excellent reliability.

TECHNICAL DATA

Measuring range -80¡­+60¡ætd
Accuracy ¡À2¡æTd
Pressure 20bar
Measuring gas Non-corrosive gas
Operating temperature -50¡­100¡æ
Relay alarm 2-way
Response time T63<12s
Flow rate
> 2L/min
Output signal 4-20mA/RS485
Mechanical connection G 1/2 tread  (ISO 228/1)
Power supply 220V/AC
Protection class IP65£¨NEMA4£©
Housing material 316 stainless steel
Repeatability <0.5%RH ;<0.1¡æ
EMC complience with 04/108/EG
CE certificate certified

DIMENSIONS
CONSULTING SIDPH SALES ENGINEER
