SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

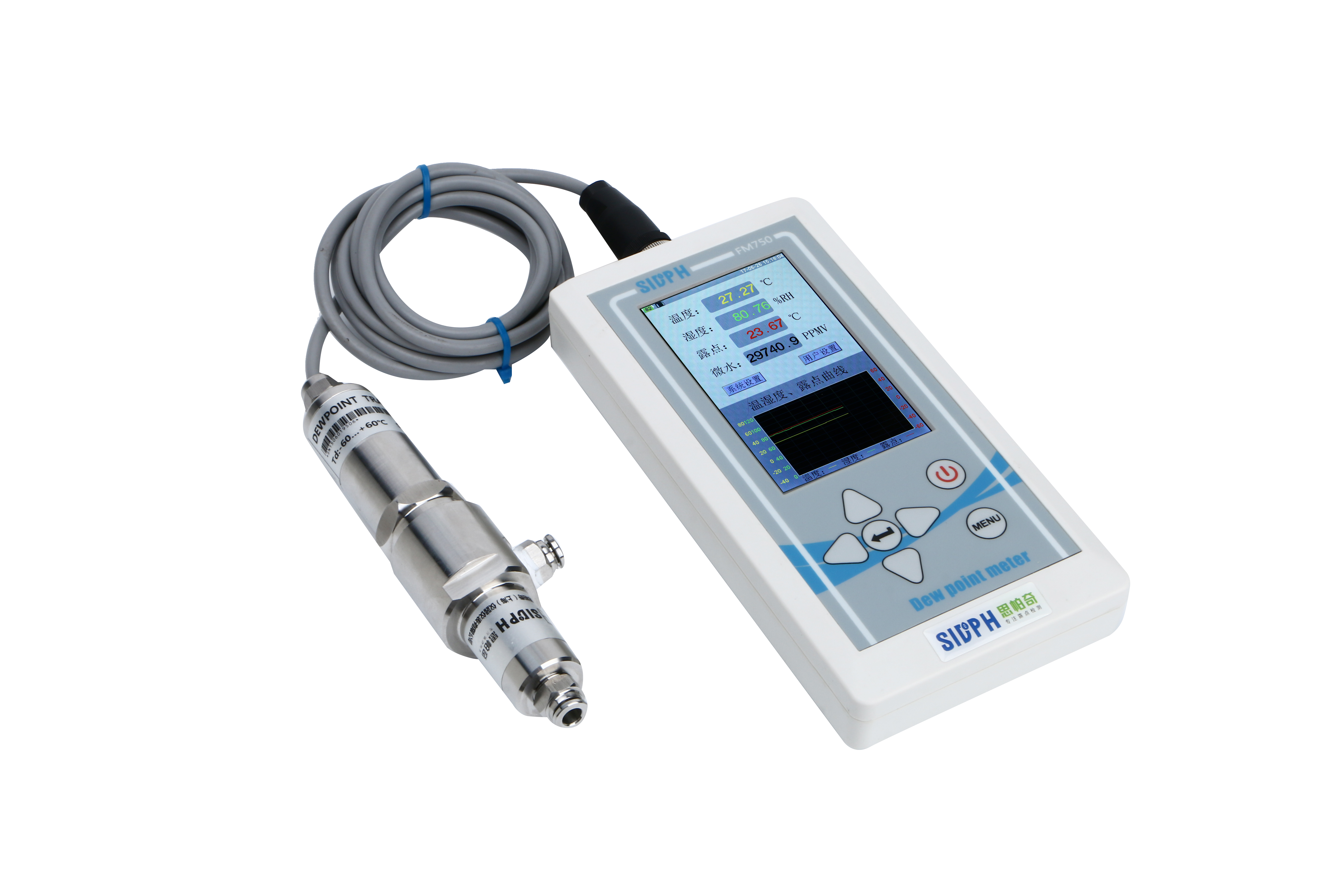

FM750 portable dew point meter

SPECIFICATIONS£º

Display relative humidity,temperature,dew point£¬PPM.

Graphic curve display

-60¡æ¡«60¡ætd dew point

50000 data storage

Designed for industrial spot checking and field calibration

Can be quickly and directly connected to the sampling point

¡À2¡æ accuracy

Traceable calibration certificate 8 point




Innovative design is the core of FM750. Hand-held use is the perfect design, simple buttons and sensitive feedback, so that you can easy handle both

in the laboratory or outside of the factory .

Menu display, simple air connection and application software, allowing users to quickly and easily set the instrument and make measurements.

All measurement parameters can be a key to call out,a password-protected settings menu, and very easy to read.


TECHNICAL DATA
Measurement range dew point£º-60~+60¡ætd
temperature£º-50~100¡æ
humidity£º0~100%RH
Accuracy dew point£º¡À2¡æTd
temperature£º¡À0.2¡æ
humidity£º¡À0.8%RH
Pressure 20bar
Measuring gas Non-corrosive gases
Environmental temperature -50~100¡æ
Shipping temperature -30~+60 ¡ãC
Respond time ¦Ó63<12s
Output signal SD card
Mechanical connection G 1/2¡± thread  (ISO 228/1)
Power supply 220V
Protection class IP65£¨NEMA4£©
Housing material 316 stainless steel
Repeatability <5%RH;<0.1¡æ
EMC Compliance with 04/108/EG
CE Certified

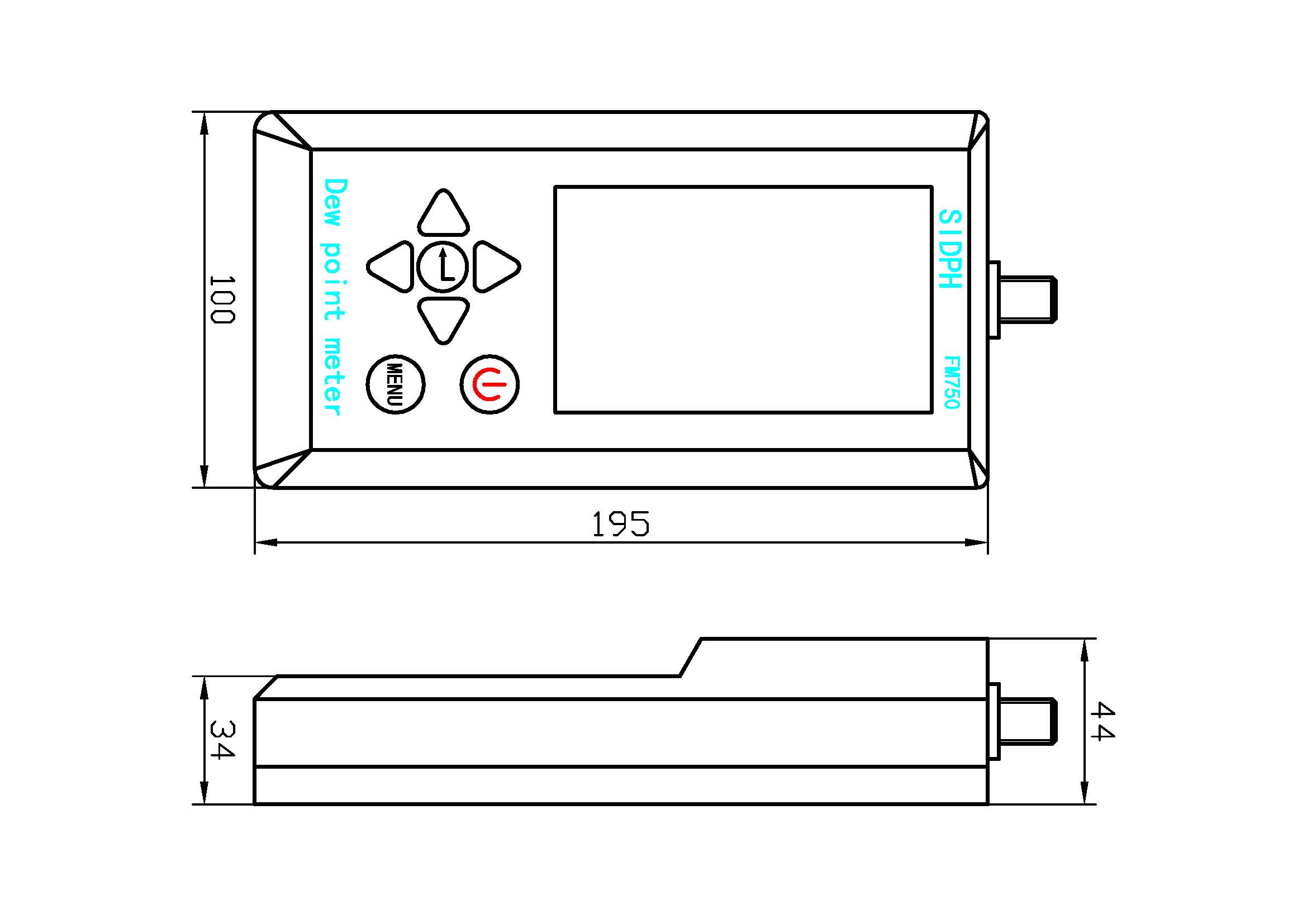

DIMENSIONS
