SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

FM1200 portable dew point meter

SPECIFICATIONS£º

High quality and reliability

Meet national and international standard

Compact size and easy to use

Improve instrument performance: sensitivity, stability, response time

Longer working and storage time

Display dew point oC(Td)¡¢PPm¡¢humidity %RH¡¢temperature

Flow control valve

Higher ambient requirements for dew point measurement

High stable and reliable, suitable for on-site testing

Large screen and easy to read the value


FM1200 portable dew point instrument, this unit is with compact size, nice appearance, easy maintenance, and simple interface, can be widely used in power systems, related research institutions and SF6 gas electrical equipment manufacturers, suitable for different conditions of SF6 gas for accurate measurement of the relevant parameters. Based on the principle of cold mirror developed, it is dedicated to the detection of gas dew point instrument. This instrument at constant pressure, so that the gas at a certain flow rate through the closed sensor chamber, by detecting the photoelectric signal changes, the use of high-precision circuits and advanced algorithms to control the refrigerator, the final control system will automatically balance the mirror temperature Gas dew point temperature, measured gas dew point
temperature value, the completion of gas humidity detection process.
TECHNICAL DATA
Measurement range


FM1200A
dew point£º-60¡­+60¡ætd
FM1200B
dew point£º-110¡­+20¡ætd
humidity£º0¡­100%RH
Accuracy dew point£º¡À2¡æTd
temperature£º¡À0.2¡æ
humidity£º¡À0.8%RH
Pressure up to 10pa
Measuring gas Non-strong corrosive gases
Gas temperature -40¡­80¡æ
Storage temperature -50¡­+75 ¡ãC
Response time T63<12s
Mechanical connection
1/8" NPT
Power supply battery
Charger intelligent charging
Battery
built-in
Working time continuous 12 hours
Gas flow 0.2 ~ 1.2 NLmin-1
2L min-1
Display temerature£¬humidity£¬dew point£¬ppmv
Language Chinese/ English
Protection class IP65£¨NEMA4£©
Housing material aluminum alloy
Repeatability <0.5%RH ;<0.1¡æ
Drift <0.1¡æTd
Weight 4KG
CE certified

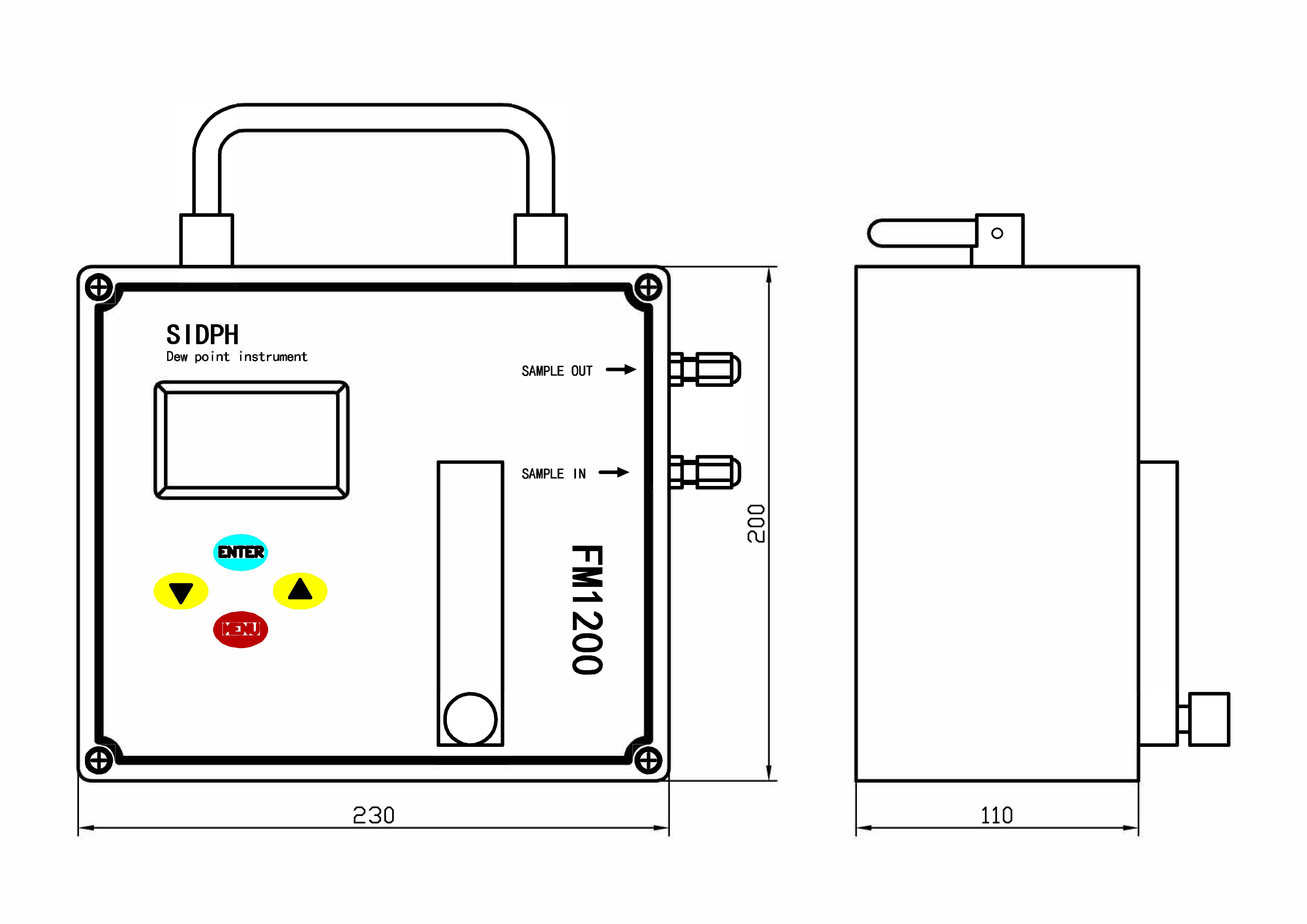

DIMENSIONS
