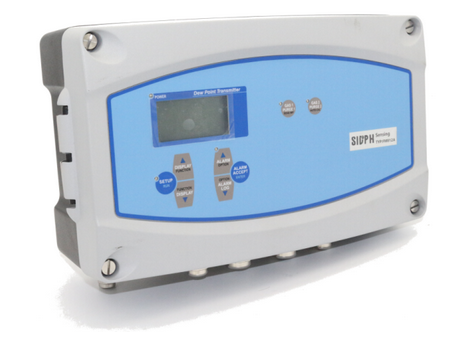

FM812 high temperature dew point meter

FM812 high temperature dew point analyzer is continuously on-line measurement of dew point or micro-oxygen content in the furnace
and in high temperature annealing furnace using a mixture of hydrogen or full hydrogen as a protective atmosphere. In the measurement
of the furnace temperature from normal temperature to 1400 ° C high temperature. The analyzer provides real-time O2 content (%) in
the furnace as well as the dew point at high temperatures and 12 other kind useful parameters. FM812 high temperature dew point
analyzer is also suitable for a variety of other needs to measure high-precision oxygen content applications and working places.
TECHNICAL DATA
Dew point range |
-50℃td…+100℃td |
Temperature range |
700…1400℃ optional(0…900° C) |
Humidity range |
0…100%RH |
Oxygen range |
1PPM…100% |
Steam range |
0…100% |
Premixed oxygen content |
0…10% |
Dew point accuracy |
±2℃Td |
Temperature accuracy |
± 2℃ |
Oxygen accuracy |
±1%. repeatability :±0.5% |
Steam accuracy |
1%RD |
Voltage supply |
100…240VAC,50/60 Hz |
Signal output |
0…20mA or 4…20mA |
Relay alarm | 1 general alarm , 3 applications alarm |
Protection class | IP65 |
Dimensions |
315mm × 190mm × 110mm |
Weight | 3kg |

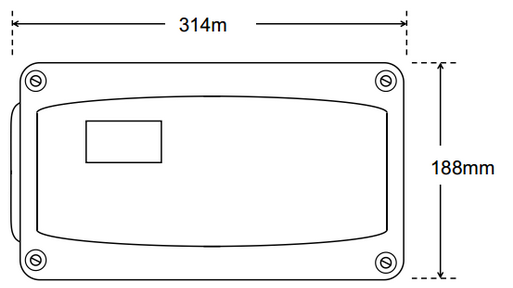

DIMENSIONS
