SIDPH dew point instruments has been designed to make continues measurement of the dew point in air and gases.Timely detection and handling of compressed air drying process problems.
It can extend the life of compressed air system components; to avoid some problems occur during compressed air system operation and maintaining efficient system operation, thus ensuring product quality and stability. Not only for applications related to air or gas drying. But also in many other industrial processes, ,as we all known that well-monitored dew points are crucial to the overall process .

PRODCUT

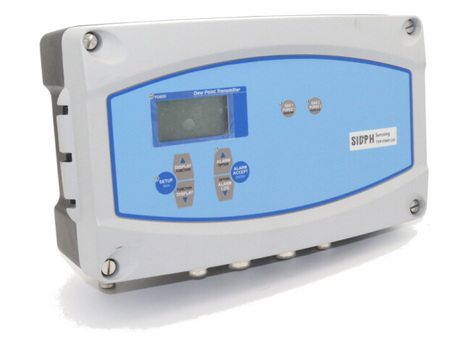

FM812 high temperature dew point meter

SPECIFICATIONS:

Measure and display dew point , humidity and oxygen

Graphic curve display

Dew point range -60℃~100td

Temperature range -50℃~1400

High accuracy ±2


FM812 high temperature dew point analyzer is continuously on-line measurement of dew point or micro-oxygen content in the furnace

and in high temperature annealing furnace using a mixture of hydrogen or full hydrogen as a protective atmosphere. In the measurement

of the furnace temperature from normal temperature to 1400 ° C high temperature. The analyzer provides real-time O2 content (%) in

the furnace as well as the dew point at high temperatures and 12 other kind useful parameters. FM812 high temperature dew point

analyzer is also suitable for a variety of other needs to measure high-precision oxygen content applications and working places.


TECHNICAL DATA
Dew point range -50℃td…+100℃td
Temperature range 700…1400℃ optional(0…900° C)
Humidity range 0…100%RH
Oxygen range 1PPM…100%
Steam range 0…100%
Premixed oxygen content 0…10%
Dew point accuracy ±2℃Td
Temperature accuracy ± 2℃
Oxygen accuracy ±1%. repeatability :±0.5%
Steam accuracy 1%RD
Voltage supply 100…240VAC,50/60 Hz
Signal output 0…20mA or 4…20mA
Relay alarm 1 general alarm , 3 applications alarm
Protection class IP65
Dimensions 315mm × 190mm × 110mm
Weight 3kg

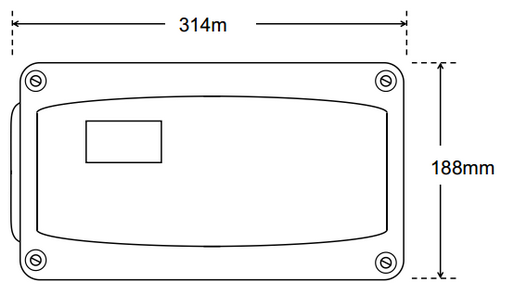

DIMENSIONS
